Using the XDR Kill Chain (Home Page)

The XDR Kill Chain dashboard is the default home page for Stellar Cyber. It provides a central location for assessing overall risk and threats found within the environment. Drilldowns to ongoing cases, risky assets, and tactics help you keep the environment and its systems secure by zeroing in on what requires immediate attention.

The illustration below introduces you to the XDR Kill Chain dashboard's major components. Following the illustration, you can review detailed information on each of the main components.

• XDR Kill Chain Loop – Provides critical/total alert counts at each of the XDR Kill Chain stages; click a stage to drill to the Alert Types page for the corresponding stage. Critical alerts are those with an Alert Score of 75 or greater.

• Status Panel – Provides at-a-glance status graphs for case status, cases, alerts, users, and assets, including trend information.

• Top Cases Panel – Lists collapsible capsule summaries of the top cases by score; click a case to drill to its Case Detail view.

• Top Risky Assets Panel – Lists collapsible capsule summaries of the top risky assets by score with multiple drilldowns for further analysis.

• Tactics Panel – Provides a bar graph quantifying the alerts observed by Stellar Cyber according to their corresponding tactics. You can filter by critical or non-critical tactics and drill to a view of the Alert Types page filtered by the corresponding tactic.

• Common Controls – Provides the standard menu bar, as well as search, query, and filter controls that appear throughout Stellar Cyber.

Getting Back to the XDR Kill Chain Dashboard

The Stellar Cyber XDR Kill Chain dashboard appears immediately after you log in and is the system's default home page:

• If you have not changed your home page by selecting the Set as homepage menu item from the upper, right-most icon, you can get back to the XDR Kill Chain dashboard by clicking the Stellar Cyber logo at the upper left of the display or by selecting the Dashboards | PREDEFINED | XDR Kill Chain menu item.



• If you have changed your home page by selecting the Set as homepage menu item, you can get back to the XDR Kill Chain dashboard by selecting the Dashboards | PREDEFINED | XDR Kill Chain menu item.

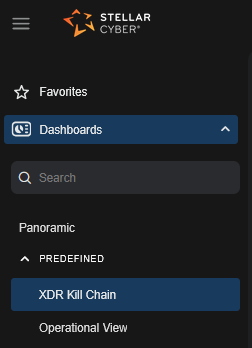

• You can assign a different page to display when you click the Stellar Cyber logo (Home). When you navigate away from the XDR Kill Chain page (which is the default for Home), for example, to the Alerts page, you can select the Set as homepage menu item to make that page your new Home page. You can toggle it back by select the Unset as homepage menu item.

XDR Kill Chain

The centerpiece of the XDR Kill Chain dashboard is the XDR Kill Chain loop. The XDR Kill Chain identifies five separate stages on the attack landscape, each with its own associated tactics and techniques. Tactics and techniques include both those based on the MITRE | ATT&CK framework, as well as native XDR versions The XDR Kill Chain augments MITRE | ATT&CK-based tactics and techniques with its own tactics to cover threat intelligence, malware detection, and anomaly detections. Threat intelligence is based on reputation analysis, malware detection on known signatures, and anomalies on deviations from standard observed behavior patterns. developed by Stellar Cyber. You can hover your mouse over any XDR Kill Chain stage to see a popup listing the tactics tracked at the corresponding stage.

Each of the stages reports counts for critical and total alerts within the selected filters and provides a drilldown to the Alert Types display, filtered for the corresponding stage.

The XDR Kill Chain includes the following stages, each identified by its own distinctive color and icon. These colors and icons are used consistently throughout the user interface to reinforce stage identification.

XDR Kill Chain Stage	Icon	Summary	Associated MITRE | ATT&CK Tactics	Associated XDR Tactics	Classic Attacks
Initial Attempts		Attackers are trying to access your network.	Resource Development External Credential Access Reconnaissance Initial Access	XDR SBA XDR Sensor Behavior Analytics (SBA) - Alerts for operational and injection-based anomalies. External XDR NBA XDR Network Behavior Analytics (NBA) - Alerts for network anomalies. External XDR UBA XDR User Behavior Analytics (UBA) - Alerts for user anomalies.	Port scanning External brute force login attempts Phishing Probes of known security holes
Persistent Foothold		Attackers are trying to maintain access to your systems in spite of defensive techniques.	Persistence Execution Defense Evasion Command and Control	XDR EBA XDR Endpoint Behavior Analytics (EBA) - Alerts for host-based anomalies. External XDR Malware Alerts for malware. XDR Intel Alerts for threat intelligence.	External trojans Account manipulation
Exploration		Attackers are inspecting your network, learning about your environment before taking further action.	Collection Discovery	Internal XDR NBA XDR Network Behavior Analytics (NBA) – Alerts for network anomalies.	Internal port scans External SQL dumpfiles Suspicious SMB copies
Propagation		Attackers are trying to obtain additional privileges and access and control additional systems on your network.	Internal Credential Access Privilege Escalation Lateral Movement	Internal XDR UBA XDR User Behavior Analytics (UBA) – Alerts for user anomalies. Internal XDR Malware XDR Malware – Alerts for malware.	Internal spyware Internal trojans Internal brute force
Exfiltration & Impact		Attackers are trying to steal data, potentially dumping it in a way that avoids detection, and/or vandalizing your systems and data.	Exfiltration Impact		Syn floods Ransomware File action anomalies

This Kill Chain loop provides an immediate barometer of the quantity and severity of the events observed by Stellar Cyber within the current filter settings. Each stage of the Kill Chain loop is shown with counts for critical and total alerts within the current filters:

• The number on the left reports the number of critical alerts within the current filters. These alerts have been scored by machine learning services with a Alert Score of 75 or greater and are most likely to need immediate attention.
• The number on the right reports the total number of alerts detected within the current filters.

The dashboard only shows data matching the current filters set using the controls at the top of the display (time, event score, sensor, and so on).

Drilling to Alerts from the XDR Kill Chain Loop

You can click any of the stages in the XDR Kill Chain loop to drill to the Alerts page with a display filter automatically applied so that just the alert types at the selected stage are displayed, as illustrated in the figure below.

Pausing the XDR Kill Chain Loop

You can pause the animation of the XDR Kill Chain loop from upper, right-most menu, as shown below:

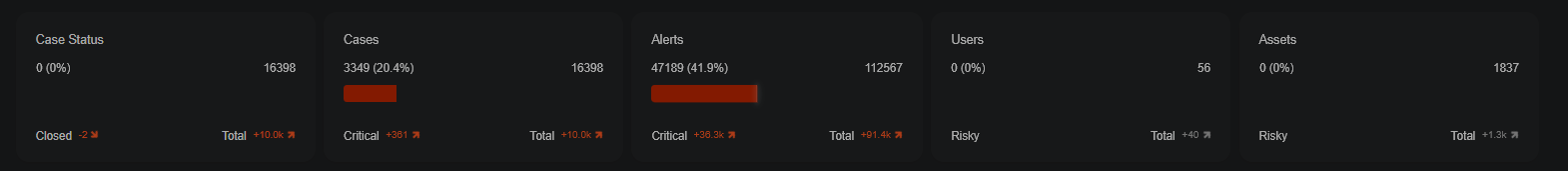

Status Panel

The Status panel appears immediately above the XDR Kill Chain and displays separate, color-coded cards illustrating counts and trends for Case Status, Cases, Alerts, Users, and Assets.

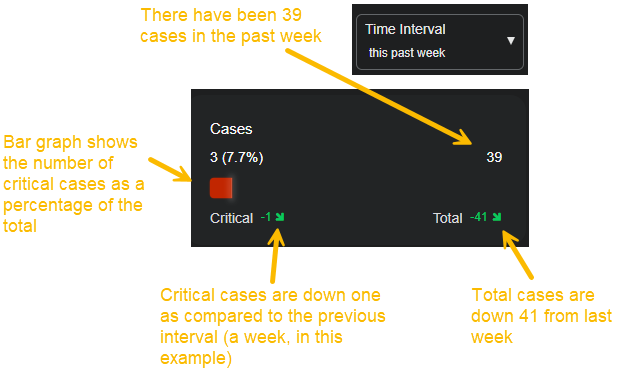

The bar graphs and counters in the Status Panel cards all function in roughly the same way. Consider the Cases status card shown below:

• Case Status – Use this panel to gauge your progress on addressing cases that match the selected filters:

  • The bar graph shows the number of Closed cases (those with a Status of either Resolved or Cancelled set in the Case Detail page) compared to the total number of cases that match the selected filters.

  • The Closed indicator shows you the trend in case closure, comparing the net increase or drop in closed cases to the previous time window of the same size. Closed cases are those with a status of either Resolved or Cancelled in the Case Detail page.

  • The Total indicator shows you the trend in total cases, comparing the net increase or drop in total case closures to the previous time interval of the same size.

• Cases – Use this panel to assess the number of cases that match the selected filters. The bar graph, Critical and Total indicators all function in roughly the same ways as the Cases Status panel, except for critical and total case creation.

• Alerts – Use this panel to assess the number of critical alerts detected in the selected time interval. The bar graph, Critical and Total indicators all function in roughly the same ways as the Case Status panel, except for critical and total alert creation.

• Users – Use this panel to assess the number of risky users detected in the selected time interval. The bar graph, Risky and Total indicators all function in roughly the same ways as the Case Status panel, except for total and risky user detection.

• Assets – Use this panel to assess the number of risky assets detected in the selected time interval. The bar graph, Risky and Total indicators all function in roughly the same ways as the Case Status panel, except for risky and total asset detection.

Top Cases Panel

The Top Cases panel lists the most severe Cases for the selected tenant in the selected Time Interval according to their score. The panel is located at the left of the XDR Kill Chain dashboard, directly under the Case Status and Cases panels, handily arranging these related tools together.

The Top Cases panel only displays open cases, regardless of the setting of the Status filter at the left of the display. Because of this, any cases you have set to Resolved or Cancelled do not appear in the Top Cases panel.

A case is a set of multiple correlated alerts and entities constituting a potential unified security attack, ranked by a dynamically updated score indicating the severity of the attack. Stellar Cyber uses its machine-learning capabilities to generate cases automatically, grouping related alerts into a unified case for improved attack resolution.

Cases appear initially in the Top Cases panel as collapsed summary entries, but can be cascaded open using the ˅ button at their right, as shown below. You can also expand all of the entries in the list using the Expand all button at the top of the panel.

Cases are reported in the Top Cases panel with the following information:

• Name – Stellar Cyber automatically assigns a name to each Case it reports. You can either accept the default name or supply your own in the Case Detail view.

• Tenant – The tenant with which this Case is associated.

• Ticket ID – The system-assigned ticket number for the Case.

• Status – The status associated with this Case. Can be either New, Escalated, In Progress, Resolved, or Cancelled. You can change the status in the Case Detail view, giving you a handy way to track your team's Case response over time.

• Case Score – The severity of the Case, as determined by Stellar Cyber. The score updates in real time as events and entities are added to or removed from the Case. Scores are color-coded to indicate their severity.

• Alerts – A count of the alerts associated with the Case.

  The maximum of associated alerts is 5,000.

• Severity– The priority of the Case. Cases start out with a Medium priority, but can be changed in the Case Detail view to Low, High, or Critical.

• Assignee – The assignee for the Case, if any. You can assign resources to Cases in the Case Detail view.

• Modified At – The last time the Case was modified by a user, either by changing any of its properties (for example, changing its status or name), or by adding/removing any event associated with the Case.

• Creator – The user account that created the Case. Cases created by Stellar Cyber are listed with a creator of System.

• Created – The time at which the Case was created by Stellar Cyber.

Drilling to the Case Detail Page

You can click on the Case name in the Top Cases panel to view the Case Detail view for the corresponding Case.

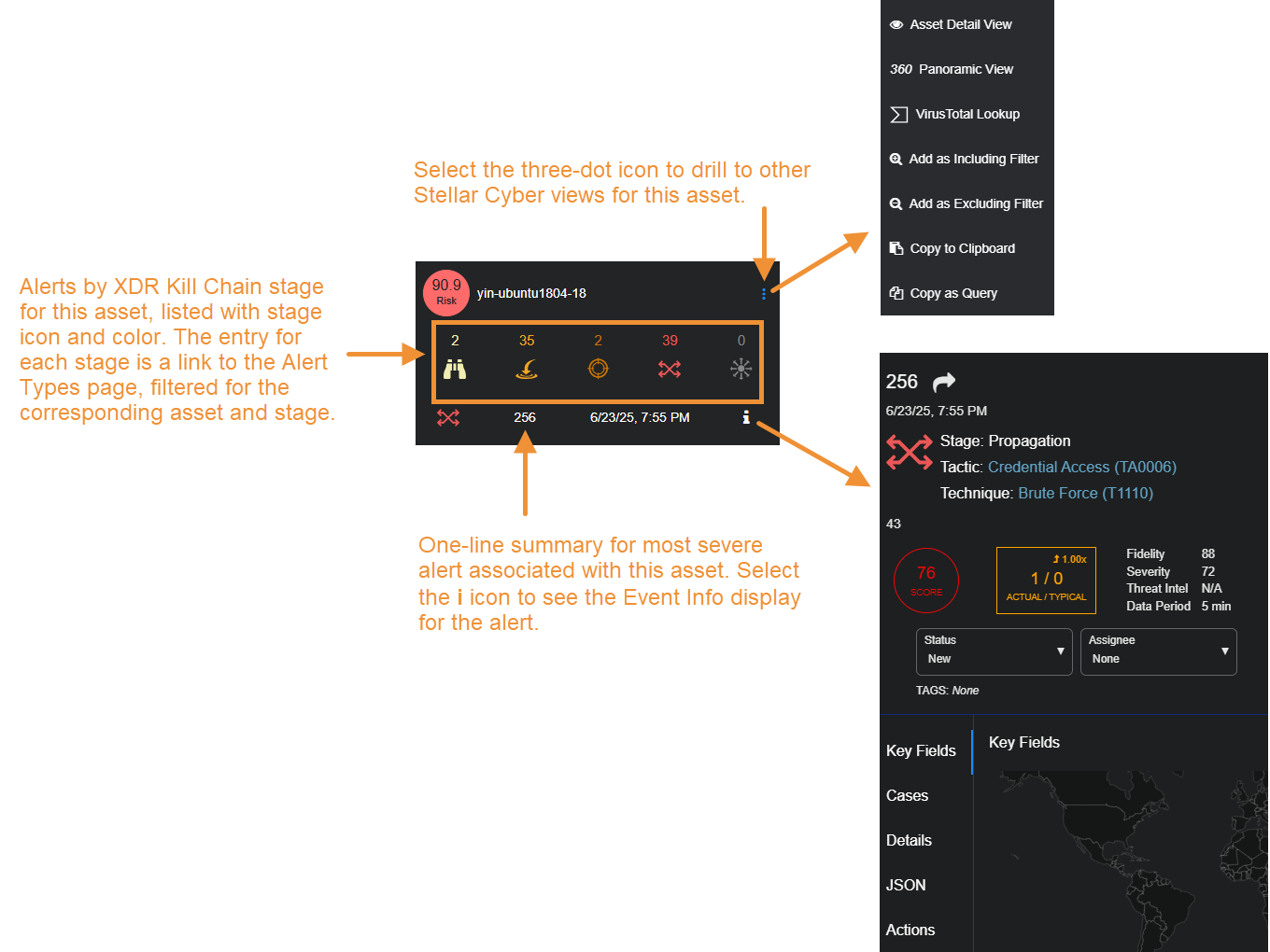

Top Risky Assets Panel

The Top Risky Assets panel lists assets in the selected Time Interval in descending order of Risk Score. The panel is located at the right of the XDR Kill Chain dashboard, directly under the Assets status panel, handily arranging these related tools together.

Assets appear initially in the Top Assets panel as collapsed summary entries, but can be cascaded open using the ˅ button at their right, as shown below. You can also expand all of the entries in the list using the Expand all button at the top of the panel.

Assets are reported in the Top Assets panel with the highest-risk entries at the top. As shown in the figure below, each asset is listed with the following information and context-sensitive drilldowns:

• Risk score. The number in the circle indicates risk. The highest risk is 100 and the least is zero.

• IP address or hostname of the asset.

• Context menu access for drilldowns to the following additional Stellar Cyber for the asset:

  • Asset Detail View – Opens the Assets | Asset Analytics | Asset Details tab for the selected friendly name, hostname, or IP address as the filter.

  • 360 Panoramic View – Opens the Dashboards | Panoramic view with the selected friendly name, hostname, or IP address as the filter.

  • VT VirusTotal Lookup – Performs a lookup on virustotal.com for the selected friendly name, hostname, or IP address.

  •  Add as Including Filter – Creates a filter to display only those events containing the value in the field.

  • Add as Excluding Filter – Filters out those events containing the value in the field.

  • Copy to Clipboard – Copies the field value to the clipboard so it can be pasted elsewhere.

  • Copy as Query – Copies a pre-built Lucene query that searches for related activity involving the IP address of the asset across multiple fields. Use this query in tools like Threat Hunting or Search to investigate communications where the IP appears as source, destination, or host.

• XDR Kill Chain summary. Alert counts are shown for each XDR Kill Chain stage, identified using their consistent stage icons and colors. You can click any stage entry to drill to the Alert Types page, filtered for the corresponding asset and Kill Chain stage.

• A one-line summary for the most severe alert associated with the asset. You can click the More Info icon to drill to the Event Display for the alert, including the supporting Interflow data.

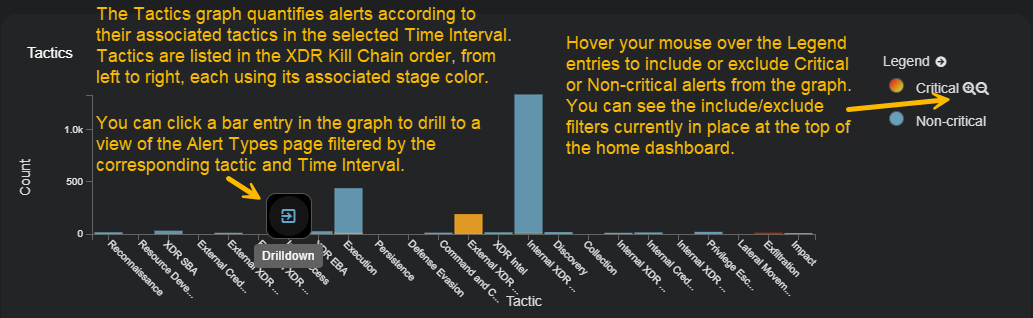

Tactics Graph

The Tactics graph at the bottom of the XDR Kill Chain dashboard quantifies alerts by their associated XDR Kill Chain tactic within the selected filters.

• Tactics are listed in XDR Kill Chain order, from left to right along the x-axis of the graph. Bar graph entries for each tactic are displayed in their corresponding XDR Kill Chain stage color.

• You can drill to the Alert Types page by clicking any bar graph entry for a tactic and selecting the Drilldown popup that appears. In response, the Alert Types page appears, already filtered by the selected tactic and time interval.

• You can hover your mouse over the Legend entries to include or exclude critical or non-critical alerts from the graph. Critical alerts are those with an Alert Score of 75 or greater.

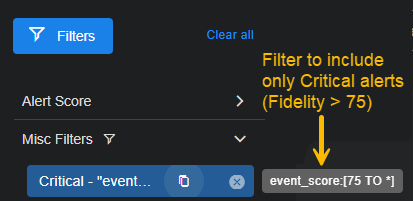

  Once you've applied an include/exclude filter, you can see its current settings at the top of the display. As shown below, you can also clear the filter to return the display to its unfiltered state.



Common Menus and Controls

This section summarizes the common menus and controls that appear on Stellar Cyber pages:

Main Menu

The user interface has icons on the left side of the screen. Click the icon to expand the icons into text menus to navigate to any function in Stellar Cyber.

All the menus are described in the Overview of New User Interface.

• Click the Stellar Cyber logo to get back to the current Home page.

• Dashboards: Access both predefined and custom dashboards, as well as create and manage new dashboards and charts.

• Cases: Manage cases– sets of multiple correlated alerts – reported by Stellar Cyber.

• Detections: Display a list of alerts observed by Stellar Cyber, organized by the XDR Kill Chain and analyzed with machine learning and view Detection Management.

• Threat Intelligence: Access both IoCs and threat intelligence feeds.

• Threat Hunting: Use selected views to perform threat hunting.

• Assets: View asset analytics and user behavior analytics.

• Automation: Define your own alert types through automation and initiate and manage actions such as user, firewall, or device actions taken in response to events.

• Reporting: Create and schedule reports.

• System: Access to administrative tools.

Filter Controls

Stellar Cyber's display filters are available both in the toolbar and as a collapsible panel at the left of most displays:

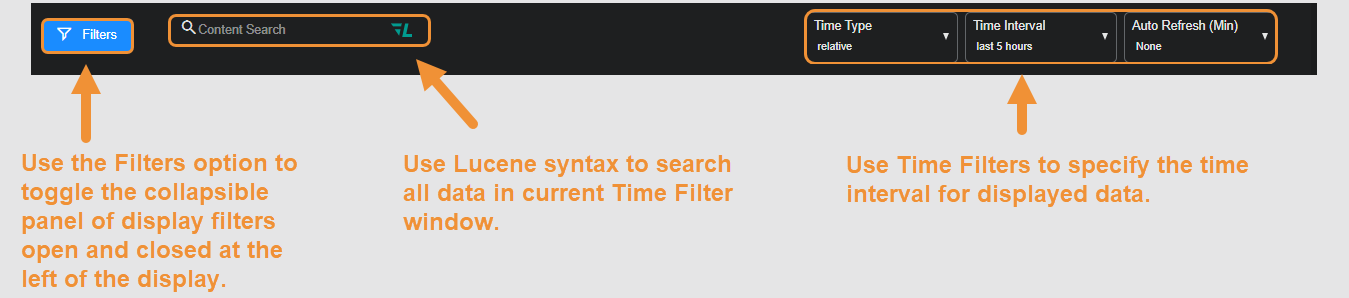

• Toolbar filters are at the top of pages that display query results, which is most pages in Stellar Cyber. For example:

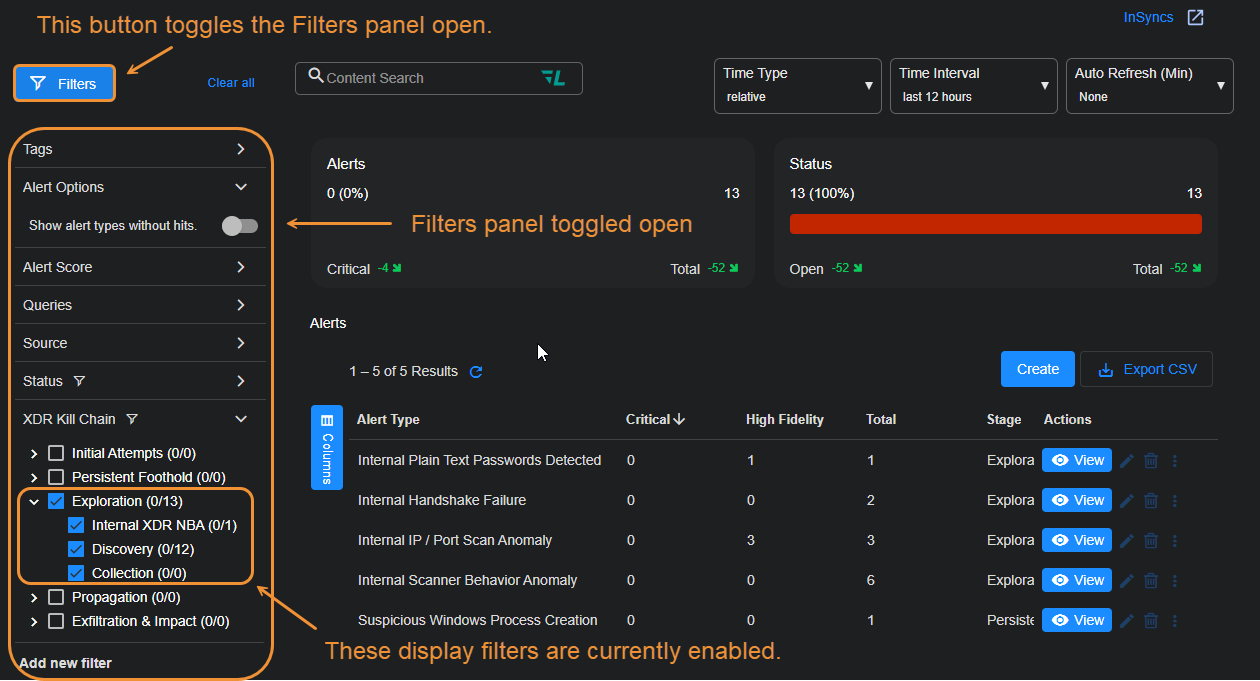

• The Filters panel is available at the left of most displays by toggling it open with the button in the toolbar:



When you set a filter, the displayed data is immediately updated. In addition, if you set a filter from the Filters panel, the filter button updates to show the number of filters applied once the panel is toggled closed. For example – .

The filter settings are persistent within a session. If you go to another page the search results remain the same. For example, if you are on the Kill Chain page and go to the Threat Hunting page, the same records are displayed.

Each of the controls take effect immediately, except for a Time Type of absolute.

See the About Filters page for a complete description of these controls.

The filter settings are persistent for the current session. So they are maintained when you go to a new page.

You can configure a preset filter for all of your views on your User Profile.

Search Tool

The search tool performs a simple search on the set of records displayed. Although easy to use, it is capable of complex search operations. For more information see the About Search page.

Saved Query / Query Builder

Use the Query Builder to construct both simple and complex queries that search the Stellar Cyber database.

You can also save and retrieve queries.

See About Queries for a complete description on how to use queries.

The current query setting is persistent for the current session and is maintained when you go to a new page.

Current User

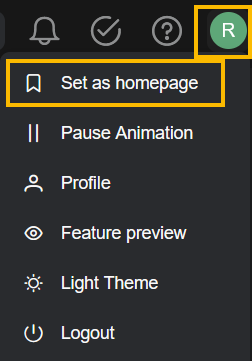

The Current User dropdown shows an icon for the currently logged-in user in the upper, right-most corner of the user interface. It provides access to the following functions:

• Set as homepage—lets you get back to the XDR Kill Chain Dashboard.

• Pause Animation—lets you pause the animation of the XDR Kill Chain graphic.

• Profile—lets you edit your user settings.

• Feature preview—lets you switch between the legacy user interface and the new user interface

• Light theme—lets you switch between the light theme and the dark theme

• Logout—ends the current session and returns you to the Login page.

Selected Tenant

All records in the Stellar Cyber system are assigned to a tenant. In addition to the filter controls, search and query results can be narrowed to reflect only those records of a specific tenant. Alternatively, all tenants can be included.

Stellar Cyber users assigned to a tenant but who are not admin users cannot change the tenant setting.

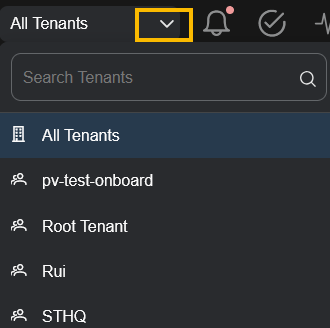

Click the Tenant dropdown at the top right of the user interface to change the selected tenant.

See the About Tenants page for more information on Stellar Cyber tenants.

The Select Tenants setting is persistent within the current session and is maintained when you go to a new page.

Utility Icons

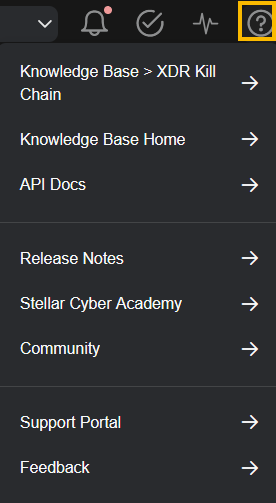

• Click the question mark icon to open a menu that provides access to the documentation and other tools, such as the Stellar Cyber Academy and Support Portal.

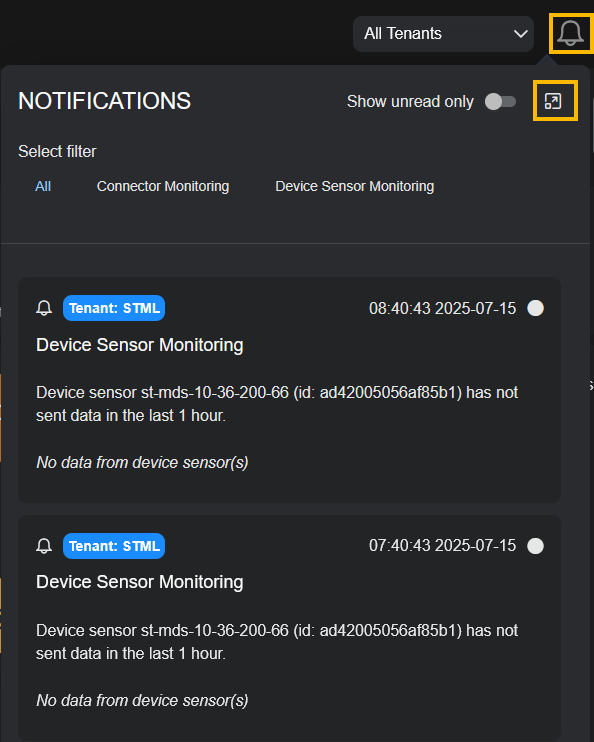

• Click the alarm bell icon to open Notifications to show you the number of unread system notifications. Click the icon to launch the Notification Center. Users with appropriate access can specify rules that govern how system notifications are generated in the System Action Center.

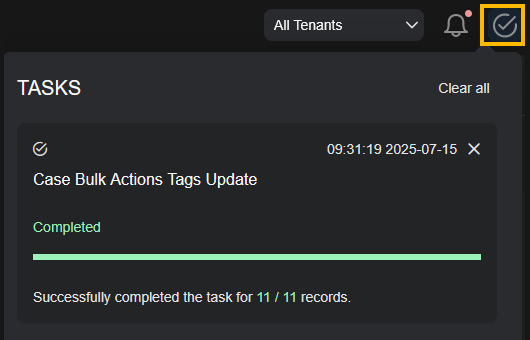

• Click the tasks icon to open Tasks to keep track of the progress, success, or failure of ongoing Stellar Cyber activities (bulk actions to Cases, asset edits, and so on). Depending on the amount of data affected by an action, it make take a few seconds for some actions to complete. The Task List is useful in these situations, letting you see the progress of the action. Here's how you display the Task List, complete with some successful bulk actions:



  You can clear individual tasks from the Task List using the standard close button (X) at the upper right of their entries in the list. Clear all of the tasks using the Clear all button at the top of the list.

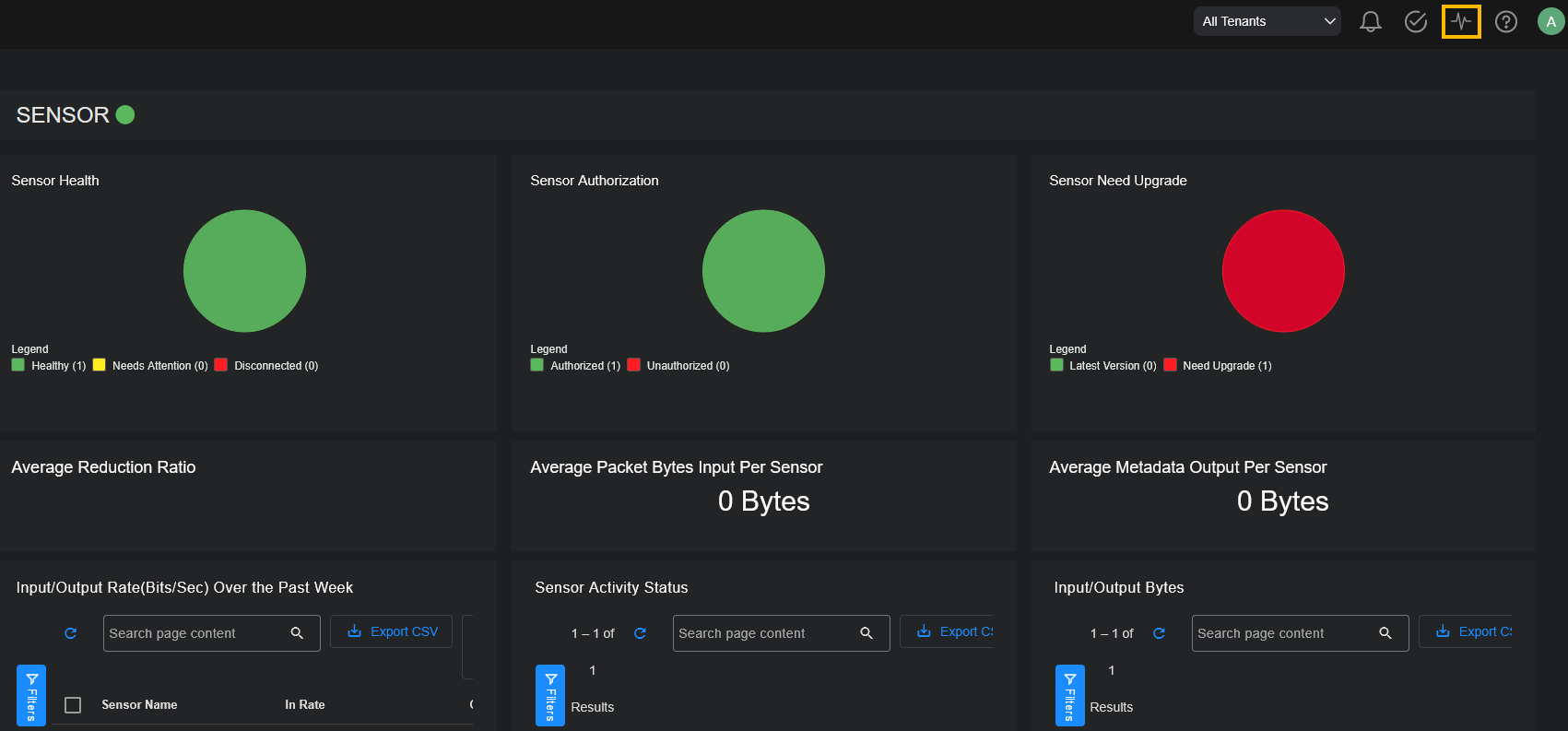

• Click the heartbeat icon to open the System Status page. When it is green, there are no outstanding system health issues.



• Click the forensics mode icon to indicate the DP is in forensics mode. Click this icon to jump to the Cold Storage Imports view and check status of the files being imported for analysis.
