Overview of New User Interface

Stellar Cyber has a new user interface in the 6.0.0 release.

This document describes how to switch from the legacy user interface to the new user interface and back, the menus and icons in the new user interface, and a mapping of the legacy user interface's menus and menu items to the new user interface's menus and menu items.

See the following:

About Screen Captures in the Stellar Cyber Knowledge Base

Stellar Cyber is in the process of updating the screen captures in the Knowledge Base to match the new user interface. As you use the KB, you may still see some places where the screen captures show the legacy user interface. These differences do not affect Stellar Cyber functionality. We are working to match the KB to the new user interface and will finish soon. Thank you for your patience!

Switching User Interfaces

This section describes how to switch the logged in user from the legacy user interface to the new user interface, switch themes in the new user interface, and switch back to the legacy user interface.

Switching from the Legacy UI to the New UI

You can switch from the legacy user interface to the new user interface on a per-user basis. The user interface only changes for that user.

To switch the logged in user from the legacy user interface to the new user interface:

  1. Locate the logged in user. It is to the right of the System menu at the top of the screen.

  2. Click the down arrow to view the menu items.

  3. Select Feature preview.

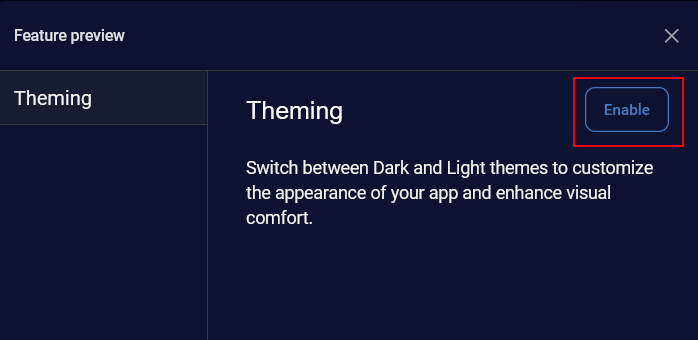

  4. In the Feature preview dialog, click Enable for Theming.

  5. The user interface changes to a Dark theme and Theming changes to Disable.

    The default is the Dark theme.

  6. Click the X in the top right-hand corner of the dialog to exit the Feature preview dialog and view the new user interface.

Switching Dark and Light Themes

To switch themes from Dark to Light or Light to Dark in the new user interface:

  1. Locate the right-most icon in the top right corner of the screen in the new user interface. In this example, it is a icon.

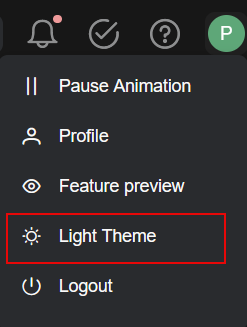

  2. Click the right-most icon to view the menu items. In this example, it is a icon.

  3. If you are in Dark Theme, select Light Theme to switch to Light Theme.

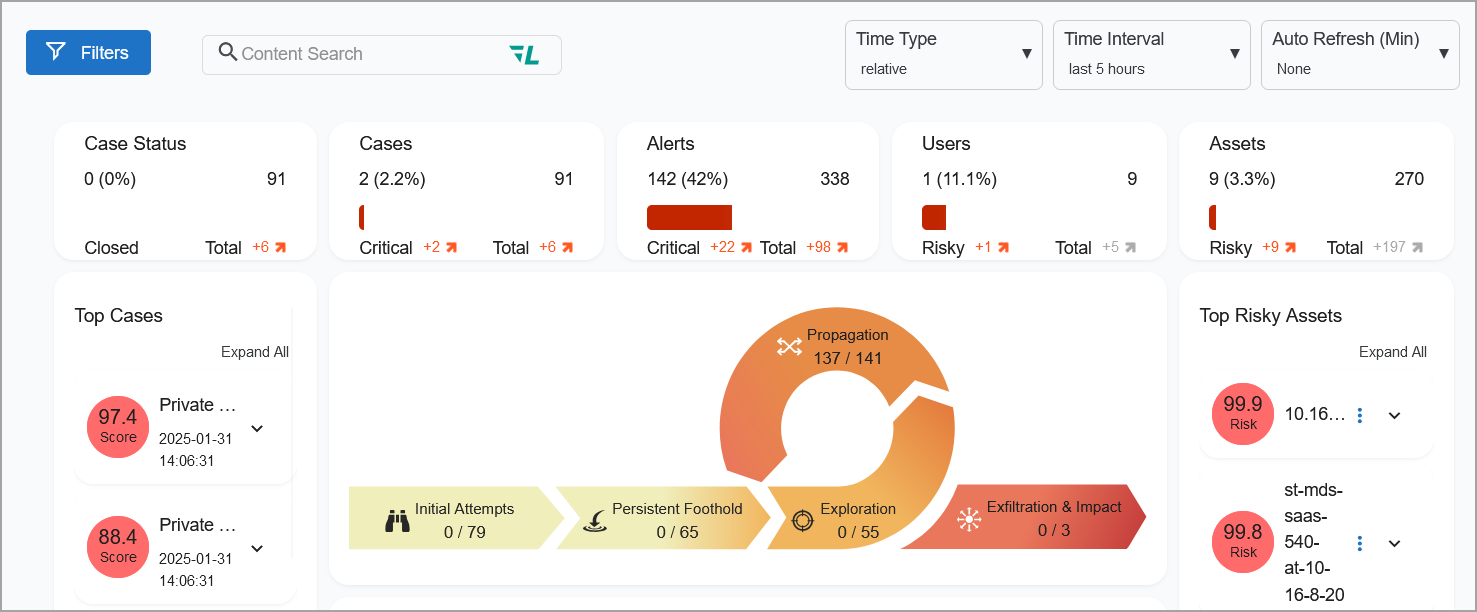

    The user interface changes to a light theme.

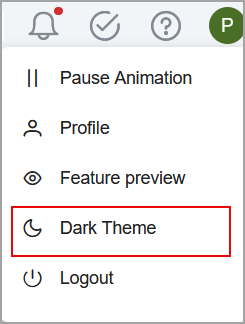

  4. If you are in Light Theme, select Dark Theme to switch to Dark Theme.

    The user interface changes to a dark theme.

Switching Back to the Legacy UI

To switch back to the legacy user interface:

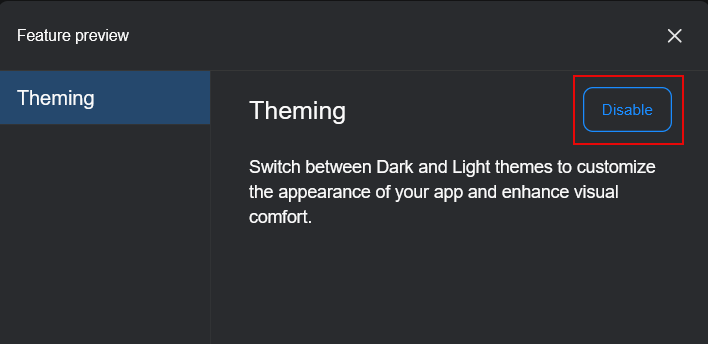

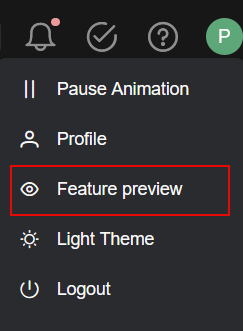

  1. Select Feature preview from the menu on the right-most icon. In this example, it is a icon.

  2. For Theming, click Disable.

  3. Click the X in the top right-hand corner of the dialog to exit the Feature preview dialog and view the legacy user interface.

Navigating in the New User Interface

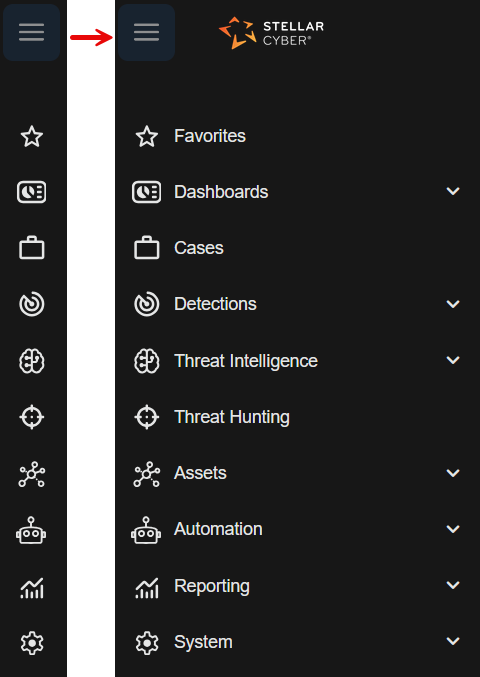

The new user interface has icons on the left side of the screen. Click the icon to expand all the icons into text menus. The menus in the new user interface are described in the sections that follow.

By comparison, the legacy user interface has text menus across the top of the screen, as well as icons on the top right of the screen.

Icons in New UI

The new user interface has icons on the top right of the screen.

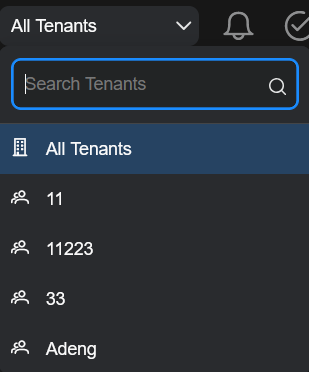

Click All Tenants to view the tenants menu items. There is a Search Tenants box and menu items for the names of tenants.

Use the Search Tenants box to search for tenants by name.

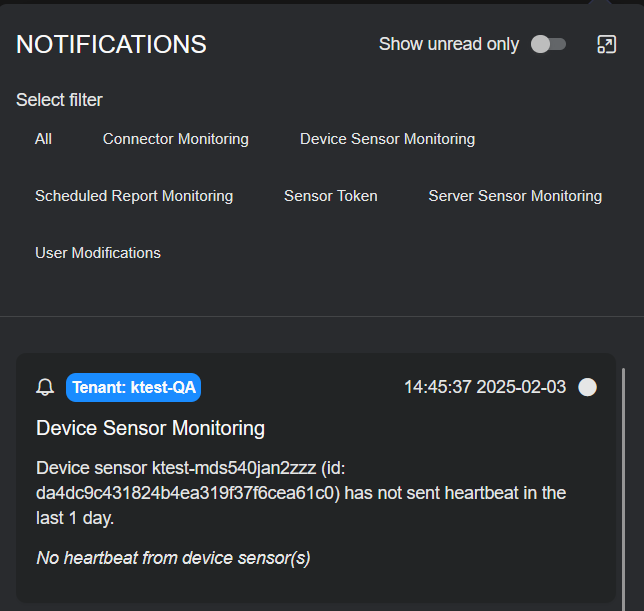

Click the icon to open Notifications.

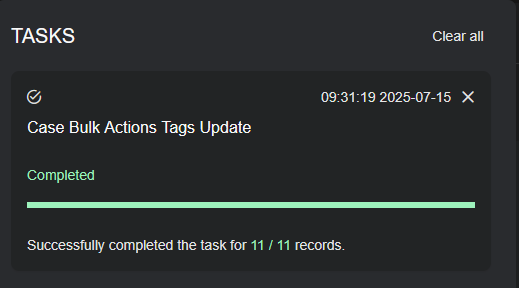

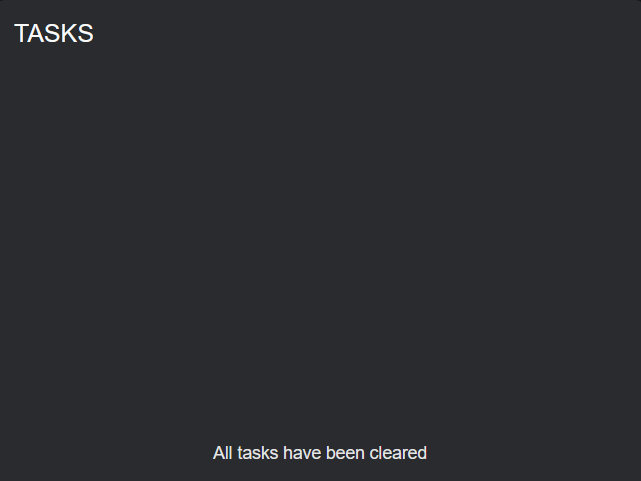

Click the icon to open Tasks. (You may not have any tasks.)

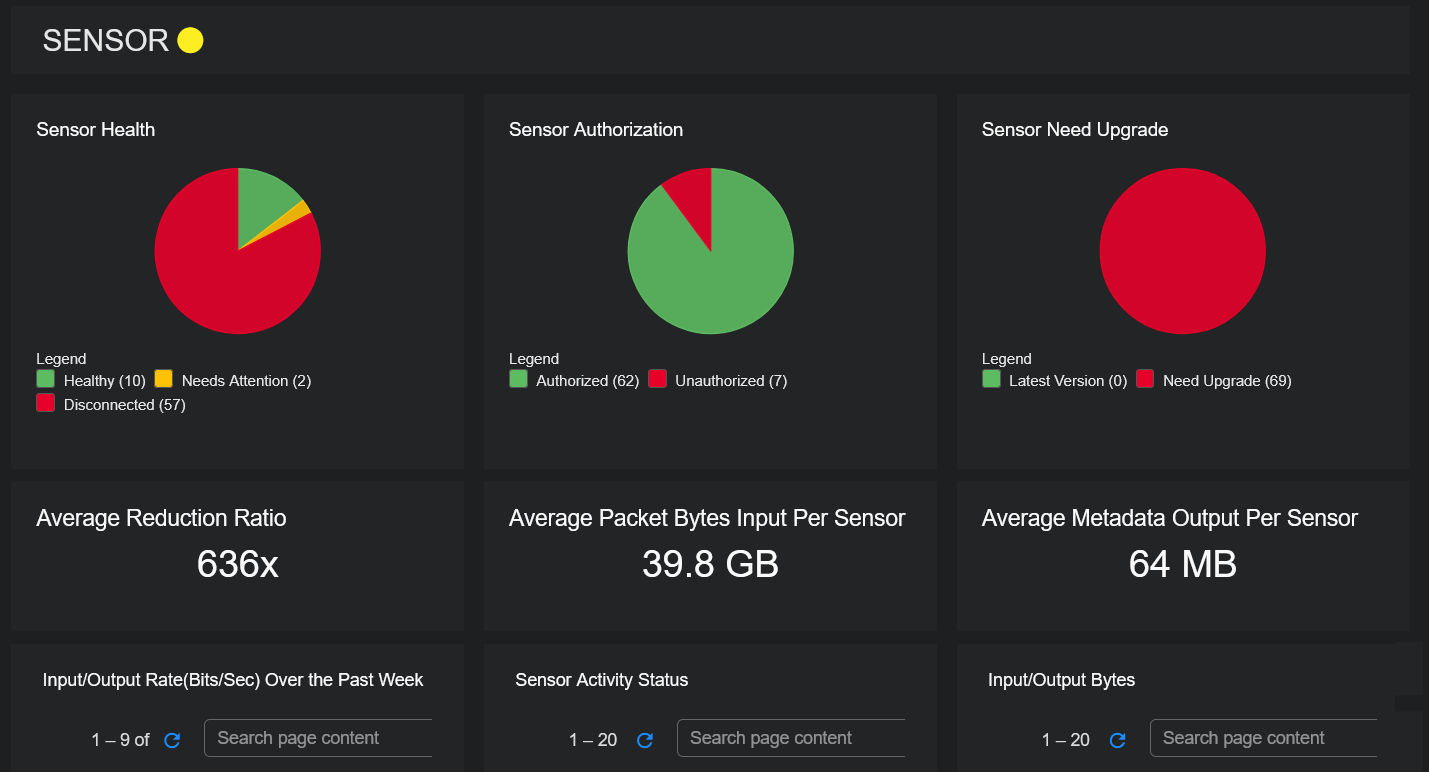

Click the icon to open the System Status page.

Click the forensics mode icon to indicate the DP is in forensics mode. Click this icon to jump to the Cold Storage Imports view and check status of the files being imported for analysis.

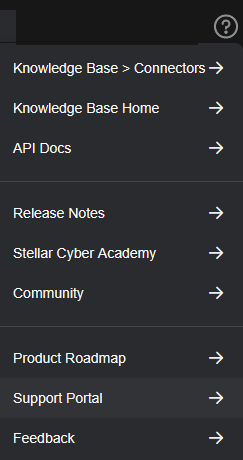

Click the icon to view the menu items: Knowledge Base <specific article>, Knowledge Base Home, API Docs, Release Notes, Stellar Cyber Academy, Community, Product Roadmap, Support Portal, and Feedback.

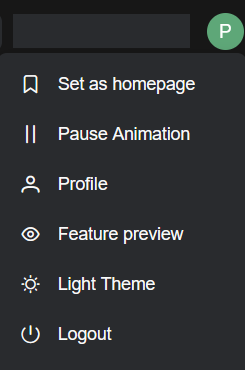

Click the right-most icon to view the menu items: Set/Unset as homepage, Pause Animation, Profile, Feature Preview, Light/Dark Theme, and Logout. In this example, it is a icon.

Favorites Menu

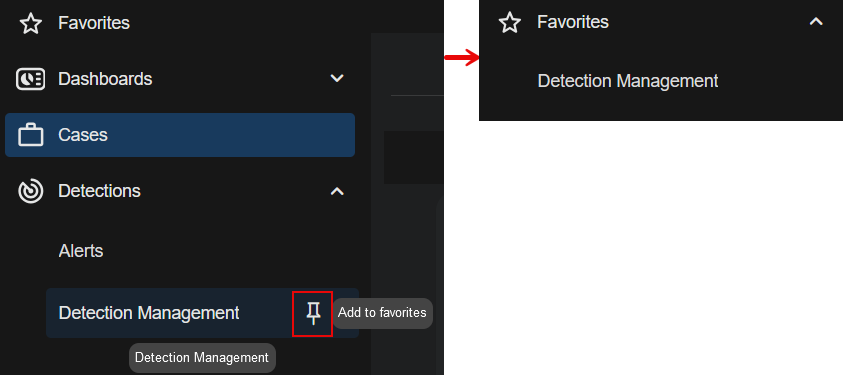

You can add your favorite menu items to the Favorites or menu. Navigate to a menu item and click the icon.

The selected menu item is pinned to Favorites.

Dashboards Menu

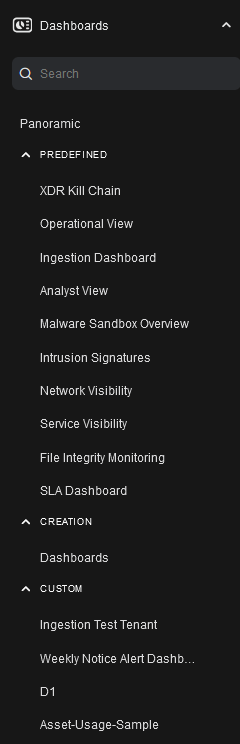

Click the icon to expand Dashboards to view the menu items in the Dashboards or menu. There is a Search box, a menu item for Panoramic, and three sections of menu items: PREDEFINED, CREATION, and CUSTOM.

Click the section headings in all caps to expand or collapse the menus.

Dashboards Search Box

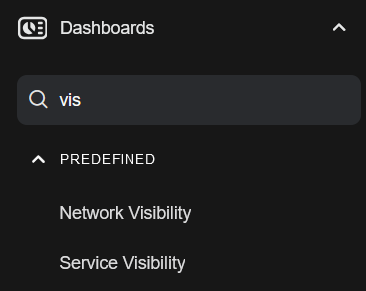

Use the Dashboards Search box to search for menu items within the Dashboards menu. For example, if you search for vis, the search result is as follows.

Panoramic

Click Panoramic to access Panoramic views.

PREDEFINED

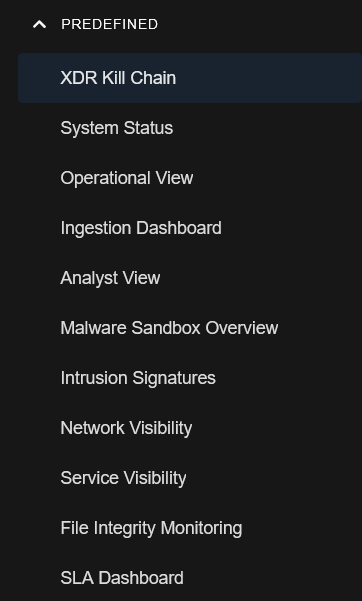

Click the icon to expand the PREDEFINED section of the Dashboards menu to view the menu items: XDR Kill Chain, System Status, Operational View, Ingestion Dashboard, Analyst View, Malware Sandbox Overview, Intrusion Signatures, Network Visibility, Service Visibility, File Integrity Monitoring, and SLA Dashboard.

CREATION

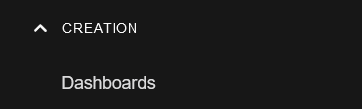

Click the icon to expand the CREATION section of the Dashboards menu to view the menu item: Dashboards.

CUSTOM

Click the icon to expand the CUSTOM section of the Dashboards menu to view the names of custom dashboards, such as the following.

Cases Menu

Click Cases or to go to the Cases page. There are no other menu items under the Cases menu.

Detections Menu

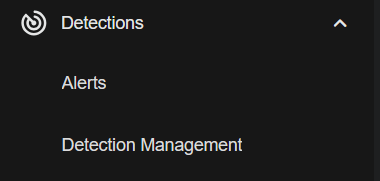

Click the icon to expand the Detections or menu to view the menu items: Alerts and Detection Management.

Threat Intelligence Menu

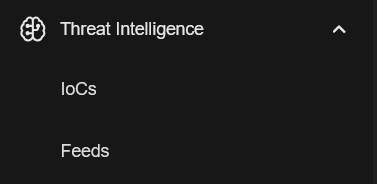

Click the icon to expand the Threat Intelligence or menu to view the menu items: IoCs and Feeds.

Threat Hunting Menu

Click Threat Hunting or to go to the Threat Hunting page. There are no other menu items under the Threat Hunting menu.

Assets Menu

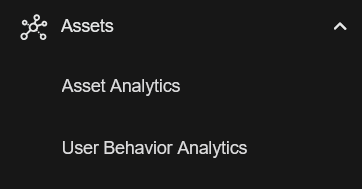

Click the icon to expand the Assets or menu to view the menu items: Asset Analytics and User Behavior Analytics.

Automation Menu

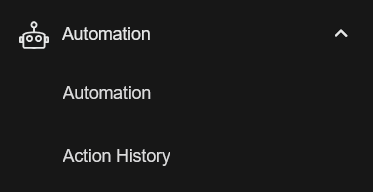

Click the icon to expand the Automation or menu to view the menu items: Automation and Action History.

Reporting Menu

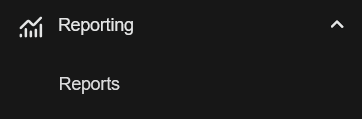

Click the icon to expand the Reporting or menu to view the menu item: Reports.

System Menu

Click the icon to expand the System or menu to view the System menu items. There is a Search box and five sections of menu items: ORGANIZATION MANAGEMENT, DATA SOURCE MANAGEMENT, INTEGRATIONS, HYPERAUTOMATION, and DATA MANAGEMENT.

Click the section headings in all caps to expand or collapse the menus.

In addition, there are a few menu items at the bottom of the System menu: System Action Center, Recipients, Saved Objects, Kibana Plugin, and Stellar Cyber Central.

System Search Box

Use the System Search box to search for menu items within the System menu. For example, if you search for filters, the search result is as follows.

ORGANIZATION MANAGEMENT

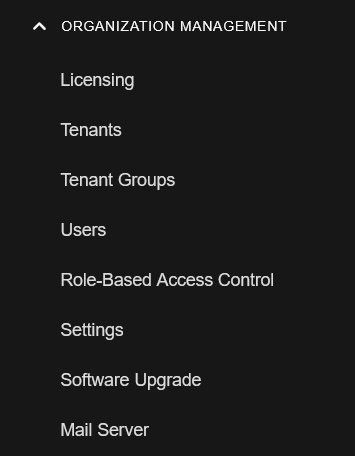

Click the icon to expand the ORGANIZATION MANAGEMENT section of the System menu to view the menu items: Licensing, Tenants, Tenant Groups, Users, Role-Based Access Control, Settings, Software Upgrade, and Mail Server.

DATA SOURCE MANAGEMENT

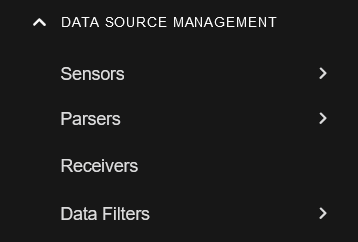

Click the icon to expand the DATA SOURCE MANAGEMENT section of the System menu to view the menu items: Sensors, Parsers, Receivers, and Data Filters.

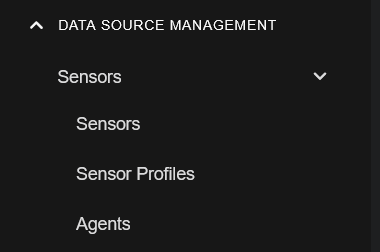

Click the icon to expand Sensors to view the menu items: Sensors, Sensor Profiles, and Agents.

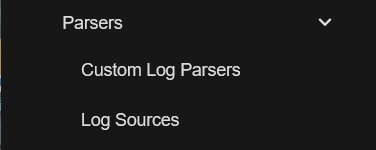

Click the icon to expand Parsers to view the menu items: Custom Log Parsers and Log Sources.

There are no other menu items under Receivers.

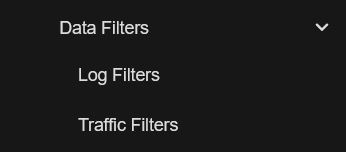

Click the icon to expand Data Filters to view the menu items: Log Filters and Traffic Filters.

INTEGRATIONS

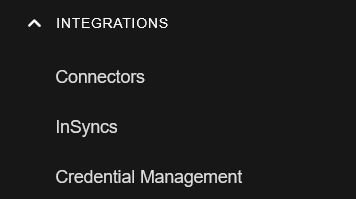

Click the icon to expand the INTEGRATIONS section of the System menu to view the menu items: Connectors, InSyncs, and Credential Management.

HYPERAUTOMATION

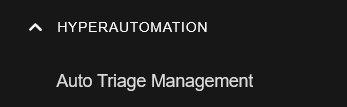

Click the icon to expand the HYPERAUTOMATION section of the System menu to view the menu item: Auto Triage Management.

DATA MANAGEMENT

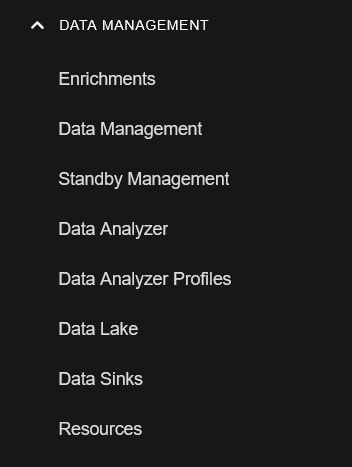

Click the icon to expand the DATA MANAGEMENT section of the System menu to view the menu items: Enrichments, Data Management, Standby Management, Data Analyzer, Data Analyzer Profiles, Data Lake, Data Sinks, and Resources.

Additional System Menu Items

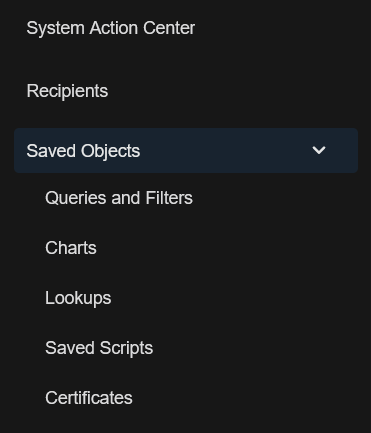

There are a few additional menu items at the bottom of the System menu: System Action Center, Recipients, Saved Objects, Kibana Plugin, and Stellar Cyber Central.

Click the icon to expand Saved Objects to view the menu items: Queries and Filters, Charts, Lookups, Saved Scripts, and Certificates.

AI Investigator Menu

Click AI Investigator or to go to the AI Investigator page. There are no other menu items under AI Investigator.

Mapping the Legacy UI Menu Items to the New UI

The table below maps the menus and menu items in the legacy user interface to the menus and menu items in the new user interface.

In the legacy user interface, a section heading, such as Predefined under the Visualize menu, was not a selectable part of the path. In the new user interface, a section heading, such as PREDEFINED under the Dashboards menu, is also not a selectable part of the path, however, you may need to click the expand icon to see the menu items under the section heading.

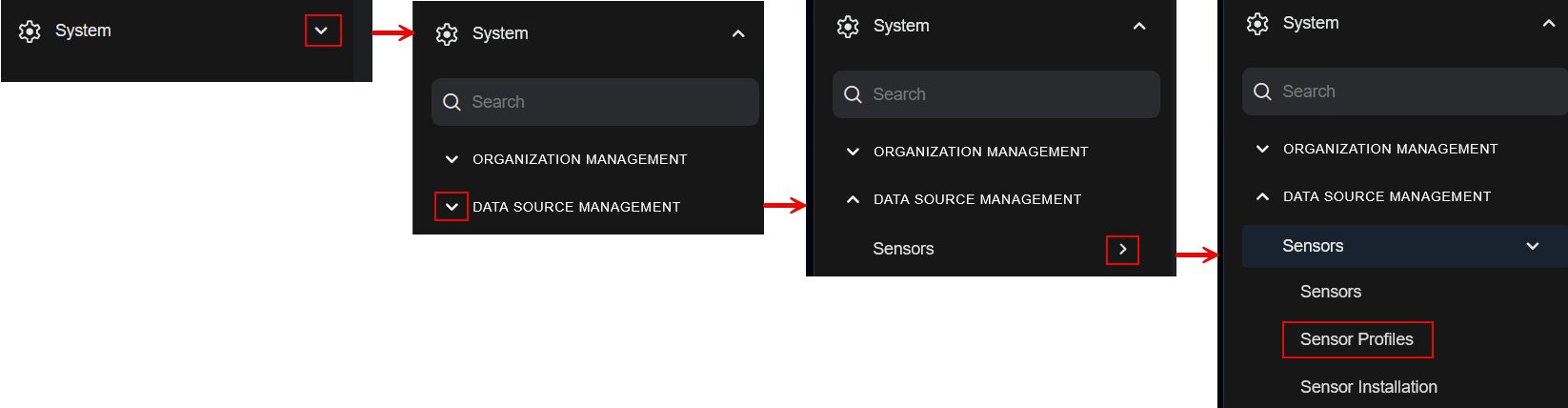

In some cases, you may need to expand multiple items. For example, to select the Sensor Profiles menu item under the System menu, expand System, expand DATA SOURCE MANAGEMENT, and expand Sensors. You can then select Sensor Profiles.

Alternatively, you can use the Search boxes under Dashboards or System to locate a menu item. For example, to find the Sensor Profiles menu item, type profile in the System Search box.

Mapping Table

Legacy User Interface

Section Heading
in Legacy UI

New User Interface
AI Investigator



 AI Investigator
Cases



 Cases
Alerts



 Detections | Alerts
Visualize | XDR Kill Chain

Predefined

 Dashboards | PREDEFINED | XDR Kill Chain

Visualize | System Status

Predefined

Dashboards | PREDEFINED | System Status
Visualize | Operational View

Predefined

 Dashboards | PREDEFINED | Operational View

Visualize | Ingestion Dashboard

Predefined

Dashboards | PREDEFINED | Ingestion Dashboard

Visualize | Analyst View

Predefined

Dashboards | PREDEFINED | Analyst View

Visualize | Malware Sandbox Overview

Predefined

Dashboards | PREDEFINED | Malware Sandbox Overview

Visualize | Intrusion Signatures

Predefined

Dashboards | PREDEFINED | Intrusion Signatures
Visualize | Network Visibility

Predefined

 Dashboards | PREDEFINED | Network Visibility

Visualize | Service Visibility

Predefined

Dashboards | PREDEFINED | Service Visibility

Visualize | File Integrity Monitoring

Predefined

Dashboards | PREDEFINED | File Integrity Monitoring

Visualize | SLA Dashboard

Predefined

Dashboards | PREDEFINED | SLA Dashboard
Visualize | Dashboards

Creation

 Dashboards | CREATION | Dashboards

Visualize | Charts

Creation

System | Saved Objects | Charts
Visualize | <name>

Custom

Dashboards | CUSTOM | <name>

Investigate | Threat Hunting



Threat Hunting

Investigate | Asset Analytics



Assets | Asset Analytics

Investigate | User Behavior Analytics



Assets| User Behavior Analytics

Investigate | Panoramic



Dashboards | Panoramic

Investigate | Kibana Plugin



System | Kibana Plugin

Respond | Automation



Automation | Automation

Respond | Actions



Automation | Action History

Respond | Reports



Reporting | Reports

System | Sensors

Collection

System | DATA SOURCE MANAGEMENT | Sensors | Sensors

System | Sensor Profiles

Collection

System | DATA SOURCE MANAGEMENT | Sensors | Sensor Profiles

System | Receivers

Collection

System | DATA SOURCE MANAGEMENT | Receivers

System | Custom Log Parsers

Collection

System | DATA SOURCE MANAGEMENT | Parsers | Custom Log Parsers

System | Log Filters

Collection

System | DATA SOURCE MANAGEMENT | Data Filters | Log Filters

System | Traffic Filters

Collection

System | DATA SOURCE MANAGEMENT | Data Filters | Traffic Filters

System | Log Sources

Collection

System | DATA SOURCE MANAGEMENT | Parsers | Log Sources

System | Connectors

Integrations

System | INTEGRATIONS | Connectors

System | Threat Intelligence Platform

Integrations

Threat Intelligence | IoCs

Threat Intelligence | Feeds

System | InSyncs

Integrations

System | INTEGRATIONS | InSyncs

System | Enrichments

Data Processor

System | DATA MANAGEMENT | Enrichments

System | Data Management

Data Processor

System | DATA MANAGEMENT | Data Management

System | Standby Management

Data Processor

System | DATA MANAGEMENT | Standby Management

System | Data Analyzer

Data Processor

System | DATA MANAGEMENT | Data Analyzer

System | Data Analyzer Profiles

Data Processor

System | DATA MANAGEMENT | Data Analyzer Profiles

System | Data Lake

Data Processor

System | DATA MANAGEMENT | Data Lake

System | Data Sinks

Data Processor

System | DATA MANAGEMENT | Data Sinks

System | Resources

Data Processor

System | DATA MANAGEMENT | Resources

System | Detection Management

Detections

Detections | Detection Management

System | Exclusions

Detections

Assets | Exclusions

System | Queries and Filters

Configurations

System | Saved Objects | Queries and Filters

System | Recipients

Configurations

System | Recipients

System | Saved Scripts

Configurations

System | Saved Objects | Saved Scripts

System | Lookups

Configurations

System | Saved Objects | Lookups

System | Stellar Cyber Central

Deployment

System | Stellar Cyber Central

System | Agents

Deployment

System | DATA SOURCE MANAGEMENT | Sensors | Agents

System | Licensing

Administration

System | ORGANIZATION MANAGEMENT | Licensing

System | Software Upgrade

Administration

System | ORGANIZATION MANAGEMENT | Software Upgrade

System | ORGANIZATION MANAGEMENT | Role-Based Access Control

Administration

System | ORGANIZATION MANAGEMENT | Role-Based Access Control

System | UsersF

Administration

System | ORGANIZATION MANAGEMENT | Users

System | Tenants

Administration

System | ORGANIZATION MANAGEMENT Tenants

System | Tenant Groups

Administration

System | ORGANIZATION MANAGEMENT | Tenant Groups

System | Settings

Administration

System | ORGANIZATION MANAGEMENT | Settings

System | Mail Server

Administration

System | ORGANIZATION MANAGEMENT | Mail Server

System | Certificates

Administration

System | Saved Objects | Certificates

System | System Action Center

Administration

System | System Action Center
