Configuring Automox Connectors

This connector allows Stellar Cyber to ingest logs from Automox and add the records to the data lake. It integrates with Automox APIs to query several content types.

Note the following rate limit in the Automox documentation:

Stellar Cyber connectors with the Collect function (collectors) may skip collecting some data when the ingestion volume is large, which potentially can lead to data loss. This can happen when the processing capacity of the collector is exceeded.

Connector Overview: Automox

Capabilities

  • Collect: Yes

  • Respond: No

  • Native Alerts Mapped: No

  • Runs on: DP

  • Interval: 8 hours

Collected Data

Content Type

Index

Locating Records

Audit Logs

Devices

Events

Policies

Prepatch Report

Users

Syslog

Assets (for Devices)

msg_class:

automox_audit_logs

automox_devices

automox_events

automox_policies

automox_prepatch_report

automox_users

msg_origin.source:

automox

msg_origin.vendor:

automox

msg_origin.category:

it_mgmt

The Automox Audit Logs API may occasionally experience reliability issues. In cases where endpoint problems occur, data retrieval can be delayed for extended periods. As a result, the connector may temporarily stall and have difficulty catching up on missed data.

Domain

<Base URL>

where <Base URL> is a variable from the configuration of this connector

Response Actions

N/A

Third Party Native Alert Integration Details

N/A

Required Credentials and Configurations

  • Base URL and API Token

Adding an Automox Connector

To add an Automox connector:

  1. Obtain credentials
  2. Add the connector in Stellar Cyber
  3. Test the connector
  4. Verify ingestion

For a limitation on filtering APIs, see Filtering APIs on Automox Connectors.

Obtaining Automox Credentials

Before you configure the connector in Stellar Cyber, you must obtain the following Automox credentials. Follow the guidance in the Automox documentation.

  • Base URL—The base URL for API access. The default is https://console.automox.com.

  • API Token—The API token for Authorization, for example:

    "Authorization": "Bearer <API_TOKEN>"

    where you replace <API_TOKEN> with the token value

  • (Optional) Organization ID—The ID for the organization, which is the last part of your console URL, for example, 0000:

    https://console.automox.com/dashboard?o=0000

    The Organization ID is a number, not a UUID. When an Organization ID is provided, the connector will only collect data for the specified organization.

Adding the Connector in Stellar Cyber

To add an Automox connector in Stellar Cyber:

  1. Log in to Stellar Cyber.

  2. Click System | INTEGRATIONS | Connectors. The Connector Overview appears.

  3. Click Create and select Connector.

    The General tab of the Add Connector screen appears. The information on this tab cannot be changed after you add the connector.

  4. Choose IT Management from the Category dropdown.

  5. Choose Automox from the Type dropdown.

    The asterisk (*) indicates a required field.

  6. For this connector, the supported Function is Collect, which is enabled already.

  7. Enter a Name.

    Notes:
    • This field does not accept multibyte characters.
    • It is recommended that you follow a naming convention such as tenantname-connectortype.

  8. Choose a Tenant Name. The Interflow records created by this connector include this tenant name.

  9. Choose the device on which to run the connector.

    • Certain connectors can be run on either a Sensor or a Data Processor. The available devices are displayed in the Run On menu. If you want to associate your collector with a sensor, you must have configured that sensor prior to configuring the connector or you will not be able to select it during initial configuration. If you select Data Processor, you will need to associate the connector with a Data Analyzer profile as a separate step. That step is not required for a sensor, which is configured with only one possible profile.

    • If the device you're connecting to is on premises, we recommend you run on the local sensor. If you're connecting to a cloud service, we recommend you run on the DP.

  10. (Optional) When the Function is Collect, you can apply Log Filters. For information, see Managing Log Filters.

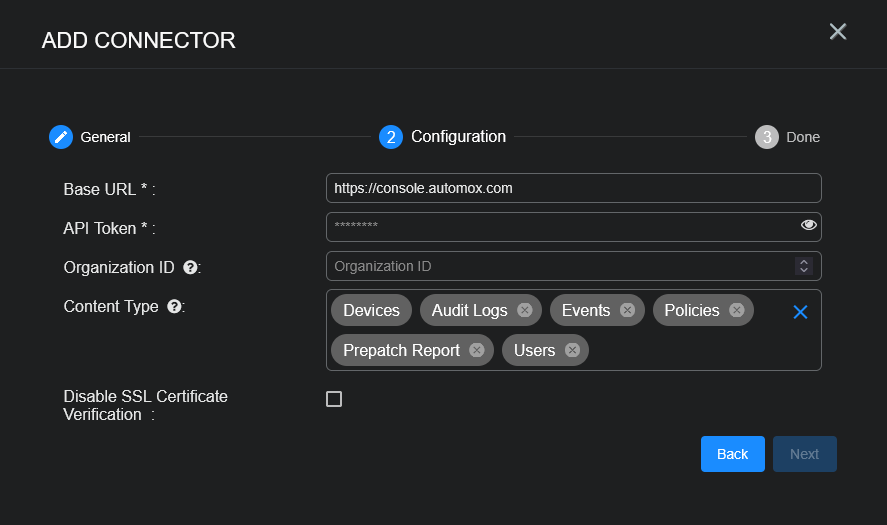

  11. Click Next. The Configuration tab appears.

    The asterisk (*) indicates a required field.

  12. Enter the BaseURL, for example: https://console.automox.com.

  13. Enter the API Token you noted above in Obtaining Automox Credentials.

  14. (Optional) Enter the Organization ID you noted above.

  15. Choose the Content Type you would like to collect. The logs for Devices, Audit Logs, Events, Policies, Prepatch Report, and Users are supported.

    The Devices content type is always selected and cannot be removed from the configuration as it is required for host information.

  16. (Optional) Click Disable SSL Certificate Verification if you want to disable SSL certificate verification. Only disable SSL certificates if you have a reason to, otherwise, it is not a good security practice.

  17. Click Next. The final confirmation tab appears.

  18. Click Submit.

    To pull data, a connector must be added to a Data Analyzer profile if it is running on the Data Processor.

  19. If you are adding rather than editing a connector with the Collect function enabled and you specified for it to run on a Data Processor, a dialog box now prompts you to add the connector to the default Data Analyzer profile. Click Cancel to leave it out of the default profile or click OK to add it to the default profile.

    • This prompt only occurs during the initial create connector process when Collect is enabled.

    • Certain connectors can be run on either a Sensor or a Data Processor, and some are best run on one versus the other. In any case, when the connector is run on a Data Processor, that connector must be included in a Data Analyzer profile. If you leave it out of the default profile, you must add it to another profile. You need the Administrator Root scope to add the connector to the Data Analyzer profile. If you do not have privileges to configure Data Analyzer profiles, a dialog displays recommending you ask your administrator to add it for you.

    • The first time you add a Collect connector to a profile, it pulls data immediately and then not again until the scheduled interval has elapsed. If the connector configuration dialog did not offer an option to set a specific interval, it is run every five minutes. Exceptions to this default interval are the Proofpoint on Demand (pulls data every 1 hour) and Azure Event Hub (continuously pulls data) connectors. The intervals for each connector are listed in the Connector Types & Functions topic.

    The Connector Overview appears.

The new connector is immediately active.

Testing the Connector

In addition to testing for connectivity, the Test button for the Automox connector tests that the Base URL and API Token are correct and data requests for the requested content types return successful responses.

When you add (or edit) a connector, we recommend that you run a test to validate the connectivity parameters you entered. (The test validates authentication and connectivity).

  1. Click System | INTEGRATIONS | Connectors. The Connector Overview appears.

  2. Locate the connector by name that you added, or modified, or that you want to test.

  3. Click Test at the right side of that row. The test runs immediately.

    Note that you may run only one test at a time.

Stellar Cyber conducts a basic connectivity test for the connector and reports a success or failure result. A successful test indicates that you entered all of the connector information correctly.

To aid troubleshooting your connector, the dialog remains open until you explicitly close it by using the X button. If the test fails, you can select the  button from the same row to review and correct issues.

The connector status is updated every five (5) minutes. A successful test clears the connector status, but if issues persist, the status reverts to failed after a minute.

Repeat the test as needed.

ClosedDisplay sample messages...

Success !

Failure with summary of issue:

Show More example detail:

If the test fails, the common HTTP status error codes are as follows:

HTTP Error Code HTTP Standard Error Name Explanation Recommendation
400 Bad Request This error occurs when there is an error in the connector configuration.

Did you configure the connector correctly?
401 Unauthorized

This error occurs when an authentication credential is invalid or when a user does not have sufficient privileges to access a specific API.

Did you enter your credentials correctly?

Are your credentials expired?

Are your credentials entitled or licensed for that specific resource?
403 Forbidden This error occurs when the permission or scope is not correct in a valid credential.

Did you enter your credentials correctly?

Do you have the required role or permissions for that credential?

404 Not Found This error occurs when a URL path does not resolve to an entity. Did you enter your API URL correctly?
429 Too Many Requests

This error occurs when the API server receives too much traffic or if a user’s license or entitlement quota is exceeded.

The server or user license/quota will eventually recover. The connector will periodically retry the query.

If this occurs unexpectedly or too often, work with your API provider to investigate the server limits, user licensing, or quotas.

For a full list of codes, refer to HTTP response status codes.

Verifying Ingestion

To verify ingestion:

  1. Select Threat Hunting.

    The Interflow Search tab appears.

  2. Change the Indices for the type of content you collected:

    • Change the Indices to Syslog.

    • For Devices only, change the Indices to Assets.

    The table immediately updates to show ingested Interflow records.

Filtering APIs on Automox Connectors

Some vendor APIs integrated through Stellar Cyber connectors do not support time-bounded querying (for example, using start_time, end_time, or equivalent filters), and may lack time-series metadata on records. As a result, Stellar Cyber is required to pull the entire dataset during each polling cycle, regardless of whether the data has changed.

Potential Impact

  • Performance Overhead: The absence of time-based filtering may lead to increased load on the Stellar Cyber ingestion pipeline and degrade collection performance over time.

  • Inefficient Polling: The connector must fetch and process all available records each cycle, leading to longer collection durations and higher resource usage.

  • Scalability Limitations: For large or growing datasets (for example, alerts, logs, or assets), this limitation may result in delayed data availability or collection timeouts.

  • Data Inconsistency: Data may be duplicated or missed due to the quantity of data.

When working with connectors that have this limitation, consider the potential impact on performance and collection efficiency.

Recommendation

Where possible, we recommend working with your vendor to improve or add time range filtering capabilities to their APIs.

Automox Connector Content Types

The Automox connector content types impacted by this limitation are as follows:

  • Device (asset)

  • Users

  • Policies

  • PrePatch Report

  • Events (filter by date only)

  • Audit Logs (filter by date only)

The Device, Users, Policies, and PrePatch Report content types can only be pulled for their entire dataset (no time range filter).

For the Events and Audit Logs content types, each time the connector is sent a request to get data, it will request it with full a day filter (for example, 2025/07/22) instead of an hour/minute time range (for example, 2025/07/21 23:50 ~ 2025/07/22 00:00).
